MEASUREMENT CAPABILITIES
The FS 5000 uses the latest in 3D sensor technology to deliver consistent, accurate measurements of cubic and irregular shaped freight. Its ability to handle a wide range of freight sizes makes it a popular investment with LTL carriers, shippers, freight forwarders, and 3PLs.
Larger, custom measuring solutions are also available – just ask.
NTEP-Certification specifics (USA)
|
Certified Accuracy
|
± 0.50"
|
|
Maximum Measurement Size
|
Length: 120" | Width: 120" | Height: 96"
|
|
Minimum Measurement Size
|
Length: 6" | Width: 6" | Height: 6"
|
Measurement Canada Certification Specifics (Canada)
|
Certified Accuracy
|
± 2.0 cm
|
|
Maximum Measurement Size
|
Length: 120 cm | Width: 120 cm | Height: 240 cm
|
|
Maximum Measurement Size
|
Length: 180 cm | Width: 180 cm | Height: 180 cm
|
|
Maximum Measurement Size
|
Length: 240 cm | Width: 240 cm | Height: 180 cm
|
|
Minimum Measurement Size
|
Length: 30 cm | Width: 30 cm | Height: 30 cm
|
OIML Certification Specifics (Multiple Countries)
|
Certified Accuracy
|
± 2.0 cm
|
|
Maximum Measurement Size
|
Length: 240 cm | Width: 240 cm | Height: 240 cm
|
|
Minimum Measurement Size
|
Length: 30 cm | Width: 30 cm | Height: 30 cm
|
PERFORMANCE CHARACTERISTICS
The FS 5000 pallet dimensioner is built to perform, offering premium performance at an affordable price. The unit can be integrated with TMS, WMS, ERP, and other back office software, allowing you to make the most of the data you collect.
|
Measures cubic and irregular shapes
|
Yes
|
|
Handles any color package material
|
Yes
|
|
Measures colored and transparent shrink wraps
|
Yes
|
|
Captures a photo(s) of freight for documentation
|
Yes
|
|
Works in all indoor lighting conditions
|
Yes
|
|
Measures protrusions 3 inches and larger
|
Yes
|
|
Compatible with WMS, TMS, ERP
|
Yes
|
INSTALLATION REQUIREMENTS

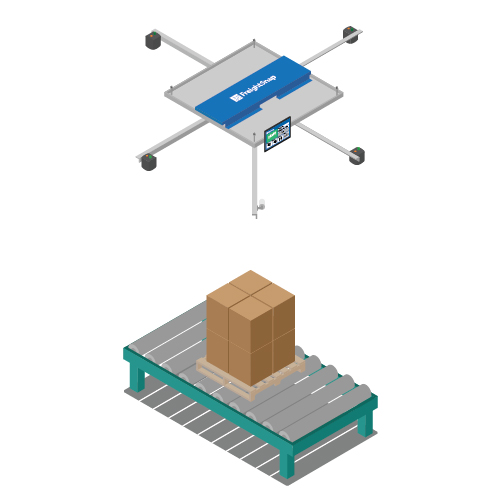

The FS 5000 pallet dimensioner installs easily in most warehouse and shipping settings. In many cases, customers require customization to maximize efficiency and/or incorporate additional equipment, including freight scales, pallet wrappers, conveyor systems, etc. When you’re ready to discuss the available options and determine the kind of setup that will work best for your business, contact us.
|
Common installation environments
|
Warehouses, trucking docks, distribution centers
|
|
Space required for installation
|
10 sq ft
|
|
Common installation types
|

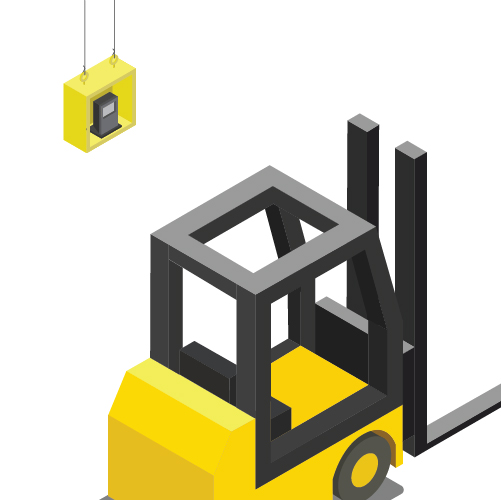

Hung from ceiling using Unistrut or high-strength cable
|
|
Suggested ceiling height for installation
|
13 ft or higher
|
|
Electrical requirements
|
Dedicated 120 volt power source
|
|
Common triggering methods
|
Scan a barcode OR trigger from a web application
|
|
Optional floor or forklift scale integration
|
Yes
|
|
Option to install over a pallet wrapper
|
Yes
|
|
Works in all indoor lighting conditions
|
Yes
|
|
Operating temperature
|
14°F – 104°F
|
DATA STORAGE OPTIONS
FreightSnap offers three options for storing the data collected by your dimensioner. A brief description of each is listed below. For more information, visit our data storage page.
|
Private Account on the Shared Cloud
|
Send data to a private account on our shared cloud. Hosted and managed by FreightSnap.
|
|
Private Cloud
|
Send data to a private cloud exclusive to your business. Hosted and managed by FreightSnap.
|
|
Your Current Solution
|
Store data on your existing cloud or server setup.
|
INTEGRATION METHODS
The dimensions, weight, and photos collected by our dimensioners can be integrated into WMS, TMS, and ERP systems in three different ways. To set up a more detailed discussion of your integration needs and options, please contact us.
|
FreightSnap API
|
Use our API to pull your data from our Cloud Storage Solutions into your preferred back-office system.
|
|
Web Service
|
Push dimensional data straight to your JSON,SOAP, or RESTful web service.
|
|
Custom Image File
|
We will send an image file containing the appropriate meta data to your servers. You decide how to parse the data into your systems.
|
OVERSEAS SUPPORT WITH FREIGHTSNAP
Support and Diagnosis
Our support teams in the US and Asia have an average initial response time of 30 minutes and provide round-the-clock support to our customers. In the event that a FreightSnap Dimensioner requires service, it can be diagnosed remotely by a FreightSnap support person, who will then resolve the issue or guide you through a simple resolution. Over 90% of issues can be resolved remotely by our support team without any customer interaction.
Plug-and-Play Configuration
Dimensioner units shipped out of the country include a supply of extra components such as cables, switches, routers, sensors, and power supplies. Each unit has a plug-and-play setup consisting of static, easily replaceable components. Due to this simple configuration, every component can be quickly replaced, and units are able to efficiently be repaired in-house to eliminate downtime.
In the Case of Repairs Needed
Once FreightSnap support diagnoses the issue, you will be guided through a simple repair. Most repairs consist of simply unplugging an existing component and replacing it with a new one. The repair will be made using the spare components shipped with the dimensioner, so you should never have to wait for a new component to arrive. Repairs can easily be made by an IT person or maintenance staff, and no special knowledge or skills are required. If you prefer, FrieghtSnap can coordinate with a third party to schedule a same-day repair.
