Catalog Station

Showcase your products with quality images, its weight and dimensions

The best part is you can have all of this in just a few seconds

Features

The catalog station includes (3) cameras to take pictures of your products from different angles, (2) Display Monitors, and (1) Keyboard, which you'll use with the built-in interface to launch freight scans

Measurement Capabilities

	Length	Width	Height
Max	48 in	24 in	24 in
Min	2.4 in	2.4 in	2.4 in
Accuracy	± 0.5 in	± 0.5 in	± 0.5 in

Catloging your products has never been this easy

Weights, measures and photographs your products in just a few seconds

Offers two heights to perform a variety of dimensioning tasks

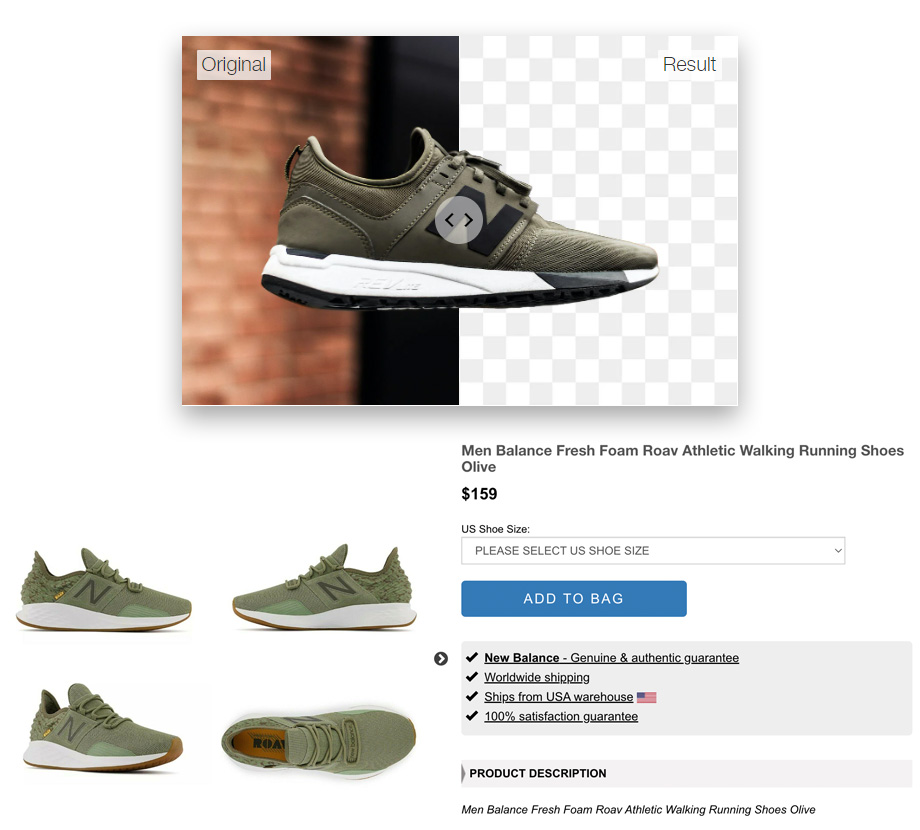

Allows you to change and eliminate the background of your images

Integrates directly with Shopify

Fits perfectly on a table

Performance Characteristics

FS PARCEL Products are high on performance and low on cost, offering powerful measurement capabilities and flexible integration with your back office systems. Not only that, but FS PARCEL Products come equipped with our FS ShipManager software, which allows you shop quotes and print labels from major package handlers like Fedex, UPS, and USPS in just a few clicks. If you’re looking for an all-in-one shipping station, one of our FS PARCEL Products could be the perfect solution.

Measures cubic and irregular shapes	Yes
Handles any color package material	Yes
Requires special alignment of packages	No
Captures a photo(s) of freight for documentation	Yes

Installation Requirements

FS PARCEL Products can be installed over the top of virtually any level surface, including tables, work benches, conveyor belts, roller belts, package scales, and more. Assembling the unit is easy and operation is intuitive. Setup is quick, allowing you to begin collecting valuable dimensional data in no time.

Common installation environments	Warehouses, offices, & other shipping settings
Required height of sensor above surface	90"
Electrical requirements	110-240V power source
Measurement surface	Avoid overly shiny or black surfaces for best results
Option to add package scale	Yes
Option to add bench scale	Yes
Operating temperature	14°F – 104° F

Data Storage Options

FreightSnap offers three options for storing the data collected by your dimensioner. A brief description of each is listed below. For more information, visit our data storage page.

Private Account on the Shared Cloud	Send data to a private account on our shared cloud. Hosted and managed by FreightSnap.
Private Cloud	Send data to a private cloud exclusive to your business. Hosted and managed by FreightSnap.
Your Current Solution	Store data on your existing cloud or server setup.

Integration Methods

The dimensions, weight, and photos collected by our dimensioners can be integrated into WMS, TMS, and ERP systems in three different ways. To set up a more detailed discussion of your integration needs and options, please contact us.

FreightSnap API	Use our API to pull your data from our Cloud Storage Solutions into your preferred back-office system.
Web Service	Push dimensional data straight to your JSON,SOAP, or RESTful web service.
Custom Image File	We will send an image file containing the appropriate meta data to your servers. You decide how to parse the data into your systems.

Dimensioning System Triggering Options

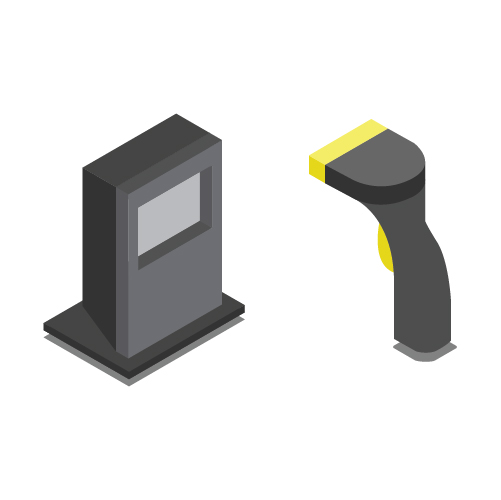

Scanners

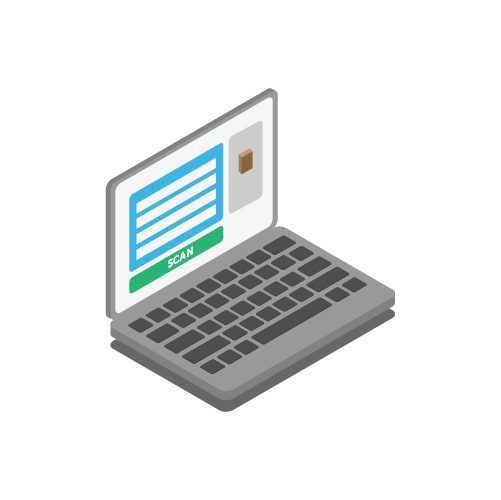

Computer/Workstation

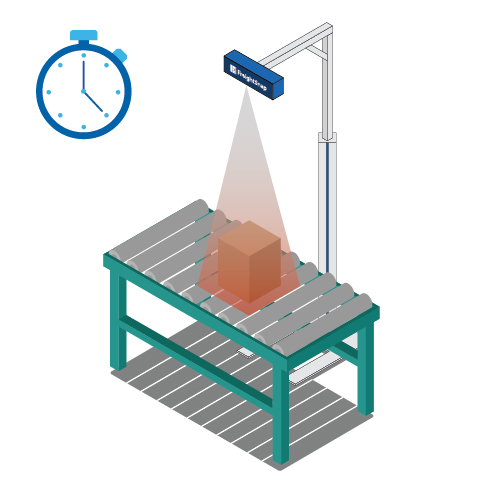

Object Sensing

Dimensioning System Equipment Integration Options

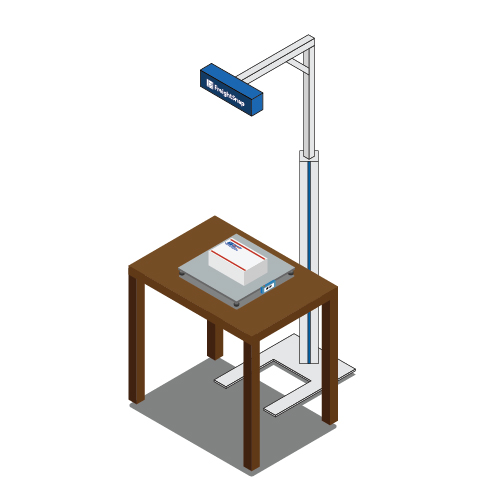

Table Scales

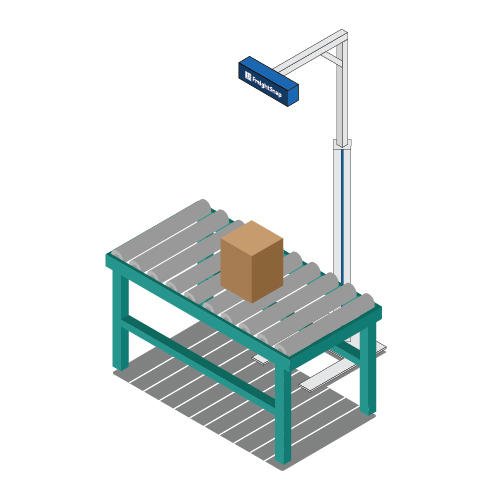

Inline Scales & Systems

Label Printers

Learn More

Let us help you find a solution for your needs

At FreightSnap, we know every company faces different challenges. That's why we work to offer specialized solutions based on your company's individual needs and wants.

Drop us a note and one of our experts will get back to you shortly! Thank you for considering FreightSnap.

Certified By

NTEP, Measurement Canada,
& OIML Certified Dimensioners
